It is an ICT complex environment control system that can monitor the greenhouse environment anytime, anywhere, and remotely/automatically control the actuator based on sensor information and big data.
In agricultural farming, where there are so many things to take care of, such as temperature, humidity, wind, and geotemperature, DAHAMFARM will manage together with the heart of a farmer. The self-developed custom applications will allow you to monitor and remotely control greenhouses without time and space constraints
Diagram
- Communication method : Wired communication (RS-485, RS-232, Ethernet, etc.)
- t carefully checks the environment inside and outside the greenhouse with precise sensors, and improves productivity with scientific management through big data.
- Automatic/remote control enables more accurate and efficient management
Reduced working hours can be invested in leisure for oneself and development for the future .
Why Daham Farm?
-
DAHAMFARM's unique integrated solution that combined all sensors into one
-
Easy to understand and use at a glance Convenient environment controller
-
ISO9001 certified company Products you can trust
-
With responsible maintenance/repair Stable use is possible
- DAHAMFARM does not only manage production!
-
Shipment management systemManagement of the date, amount, shipment volume, delivery destination, etc.
of agricultural products produced in the Smart Facility greenhouseCost Management SysteSmart Facility greenhouse management of major costs required for calculating agricultural product production costs
Work management systemOperates Smart Facility greenhouses and manages work details, schedule plans, etc. for cultivating crops
- Integrated Control System
- Integrated Environment Controller
- Internal Sensor
- A system that analyzes/determines sensor information, controls the environment, and monitors the greenhouse
-
The greenhouse can be observed with CCTV, and the crop growth condition is captured and saved as an image.
Environment data history can be checked, and converted to Excel and saved
Alarm transmission when an abnormality occurs in the system or greenhouse environment

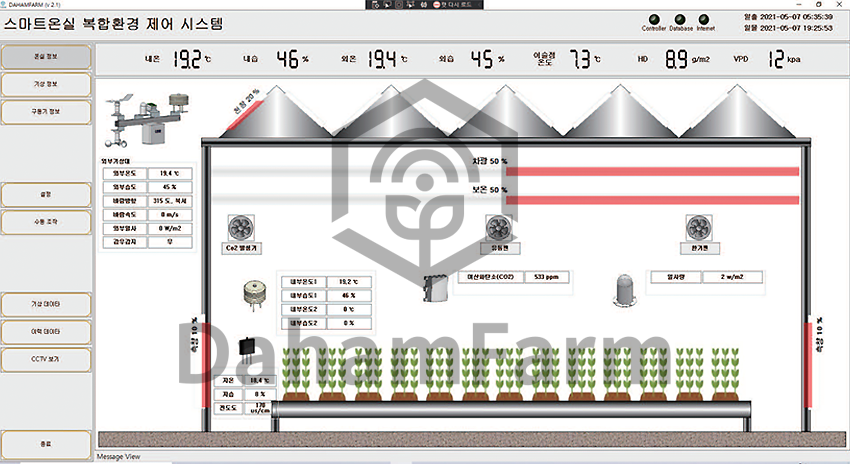

[ System main screen ]
- Provides real-time greenhouse environment data
(Internal & external sensor information, HD, VPD, daily/weekly average temperature, amount of applied carbonic acid fertilizer, etc.) - Provides real-time crop information (saves crop growth images every hour)
- Provides weather forecast information every 3 hours
- Real-time trend of environment inside and outside the greenhouse and of the weather information can be easily grasped at a glance
- It is possible to check the history and notification information of the actuator, and SMS text is sent when an abnormal situation occurs
- Environment data can be converted to Excel and saved
- Provides Data Change Trend Graph
-
-
- Weather Forecast Information Screen
- Based on the weather forecast from the Meteorological Agency, Temperature, humidity, probability of precipitation every 3 hours, Provides information such as wind speed and wind direction Provides up to 3 days (54 hours) of informatio

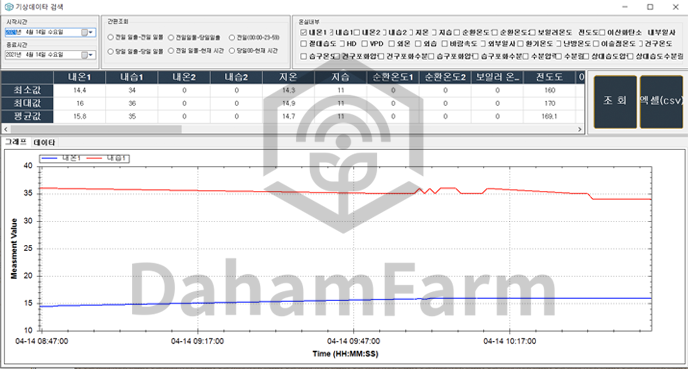

- Trend Data Screen

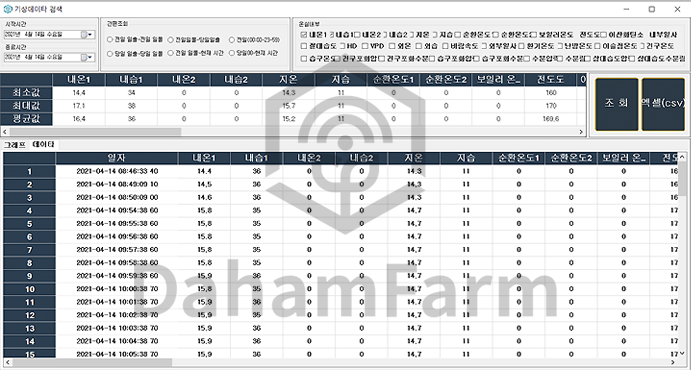

- Internal temperature/humidity and absolute humidity, dew point, saturated moisture, moisture, lack of moisture, etc. can be checked with data and graphs
The controller can be set up to 6 cycles, By saving the frequently used default settings for each controller, it is possible to conveniently load and apply the setting at any time
-

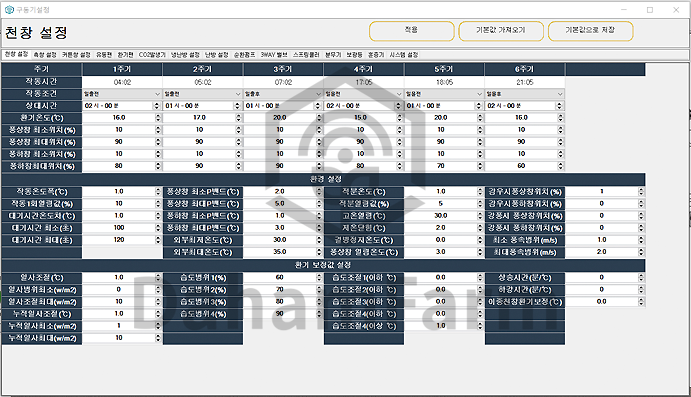

Skylight cycle setting screen
-

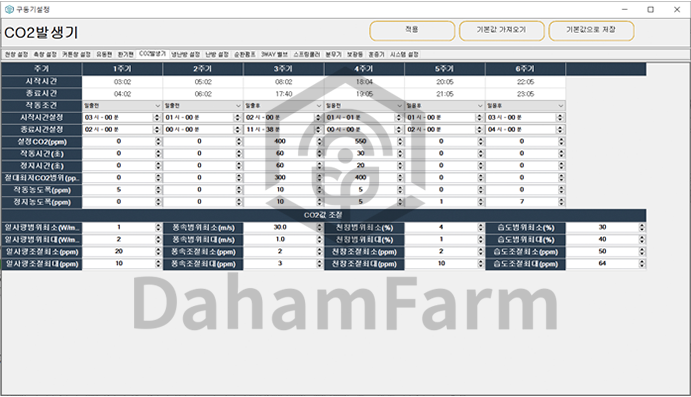

CO2 supply cycle setting screen
-

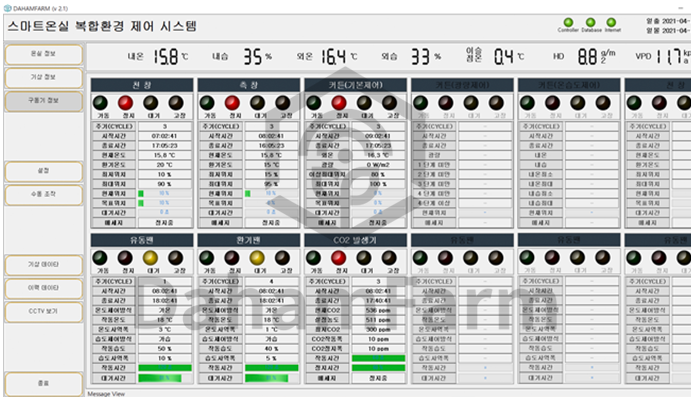

Actuator operation information screen
-

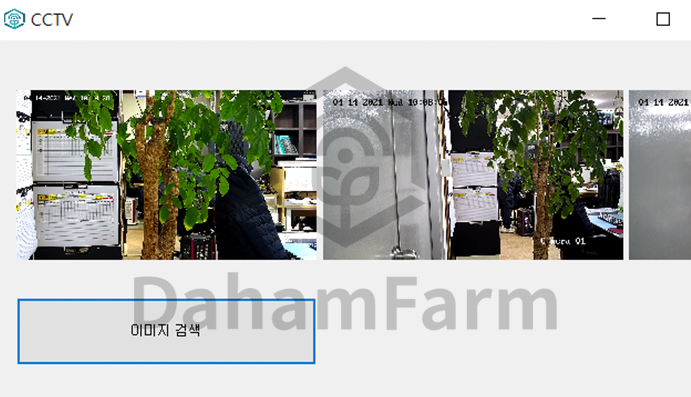

CCTV monitoring and camera angle adjustment screen
-
-

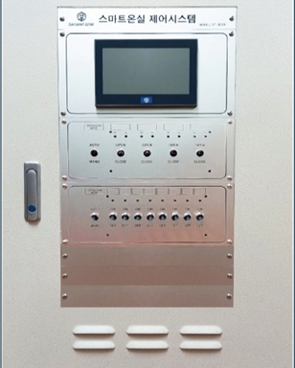

- Receive a signal from the integrated control system Composite control equipment of sensors and actuators installed in greenhouses
-
Job control is also possible manually.
When auto mode is set, the actuator is automatically controlled according to sensor information
Sensor information and operation information can be checked on the monitor
Ethernet support
Customized models can be applied according to the size and environment of the greenhouse
- MODEL -
1. DF-5000 (Large-scale ICT Greenhouse Complex Environment Control)
2. DF-3000 (Medium-scale ICT Greenhouse Complex Environment Control)
3. DF-1000 (Small ICT Greenhouse Complex Environment Control)
4. DF-500 (Provides simple monitoring and alarm)
-
-
-

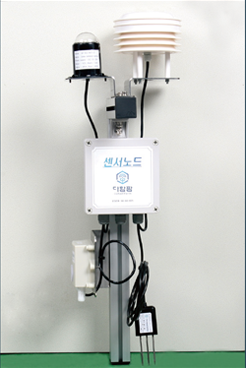

internal sensor
DF-IS-01
-
1. Temperature/humidity sensor: Measures temperature/humidity
Temperature measurement range: -40℃ ~ +80℃ Accuracy: ±0.5℃(25℃)
Humidity measurement range: 0%~100%RH / Accuracy: ±3%RH (60%RH, 25℃)1. Insolation sensor: measuring insolation
Measuring range : 0 ~ 1800W/㎥ / Spectral range : 0.3~3㎛
3. CO2 sensor: measure the concentration of carbon dioxide
Measurement range: 0 ~ 5000ppm / Accuracy: ±(40ppm+3%F S)(25℃)
4. Geothermal/Humidity Sensor: Measures soil temperature and humidity
Temperature measurement range -40~80℃ / accuracy : ±0.5℃
Temperature measurement range : 0~100% / accuracy : 0~50%는 error range 2% within.50~100% is within 3% of error range* Each sensor can be added/selected according to greenhouse size and environment.
-
-
-
-

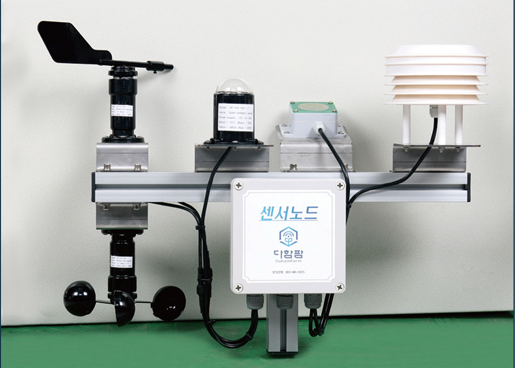

external sensor
DF-OS-01
-
1. Temperature/humidity sensor: Measures temperature/humidity
Temperature measurement range: -40℃ ~ +80℃ Accuracy: ±0.5℃(25℃)
Humidity measurement range: 0%~100%RH / Accuracy: ±3%RH (60%RH, 25℃)2. Insolation sensor: measuring insolation
Measuring range: 0 ~ 1800W/㎥ / Spectral range: 0.3~3㎛
3. Rain sensor: ON / OFF display according to the presence of rain, snow, hail, etc.
Rain reaction time: ≤ 0.5 seconds / sensor sensitivity adjustable
4. Wind direction sensor: measure the wind direction
Measurement range: 0~359˚ (8 directions) / Accuracy: ±3˚
5. Wind speed sensor: measure wind speed
Measuring range: 0~60m/s Accuracy: ±0.3m/s, ±(0.2m/s±0.02 * V)(V: actual wind speed)
* Dahamfarm service is continuously upgraded according to the situation and is subject to change accordingly.
-
